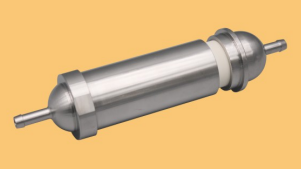

Two Piece Ceramic Pump
Suitable for various domestic and international filling machines; the shape and dimensions can be designed and manufactured according to customer requirements.
Minimum fill volume:0.1ml
Maximum filling volume:100ml
Filling accuracy: ≤0.5%
| 5ml | 10ml | 20ml | 30ml | 50ml | |
| ΦA | 18 | 22 | 25 | 29 | 35 |
| ΦB | 24 | 29 | 34 | 38 | 46 |
| ΦC | 12 | 15 | 18 | 22 | 28 |
| ΦD | 18 | 20 | 24 | 28 | 34 |
| E | 155-201 | 177-233 | 191-255 | 212-285 | 230-315 |
| F | 302 | 4 | 4 | 4 | 4 |
| G | 3.5 | 4 | 4 | 5 | 5 |
| H | 76.5 | 95.5 | 107.5 | 125.5 | 140.5 |
| ΦI | 8 | 8.5 | 8.5 | 9.5 | 10.5 |
Application of Ceramic Pumps in Machinery:
